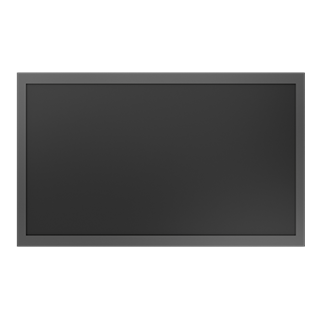

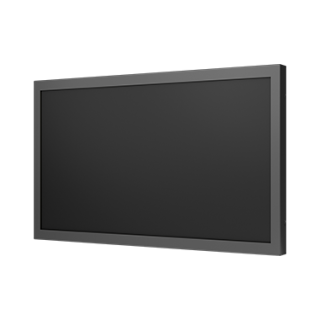

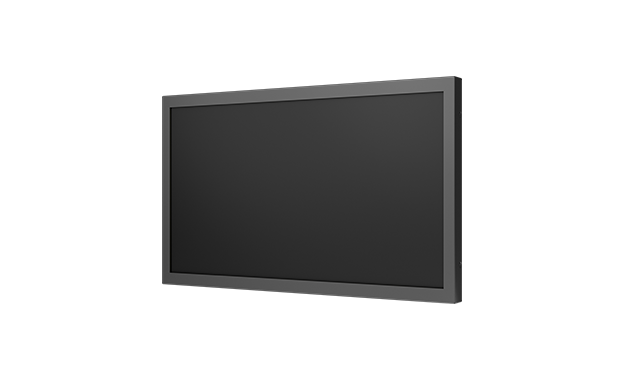

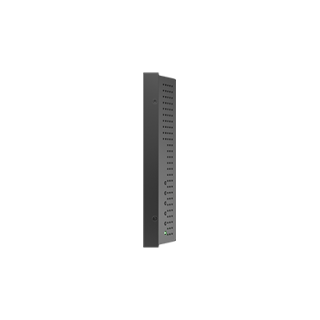

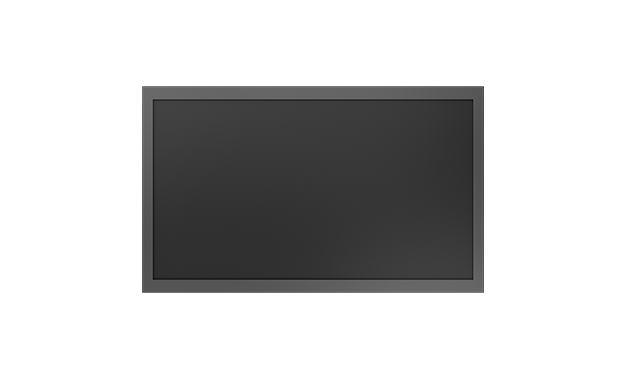

Model：ADDP15NH01.0
15.6” XGA High Brightness Display
- Size：15.6 inch
- Brightness：1000 nits (Typ.)
- Resolution：1920 x 1080
- Contrast：1000 : 1 (Typ.)
- View Angle：89°/ 89°/ 89°/ 89° (L/R/U/D)
- Response Time：25 ms
- Color：16.2 M
- LED Backlight Lifetime：50,000 Hrs.

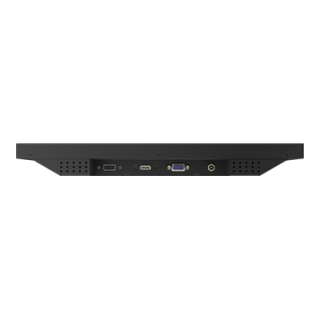

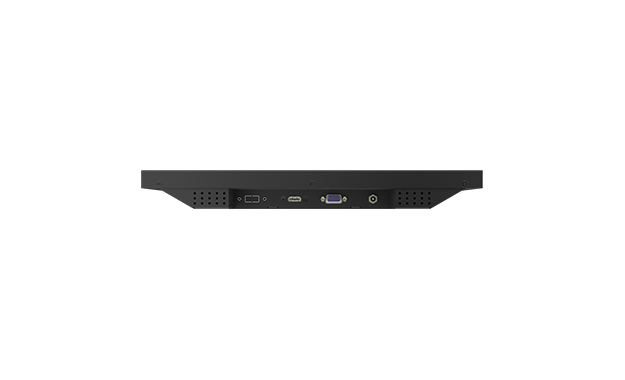

- I/O Ports：VGA*1, HDMI*1, DC Power Input

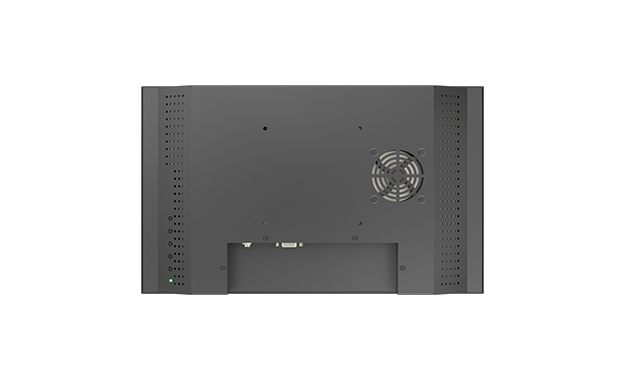

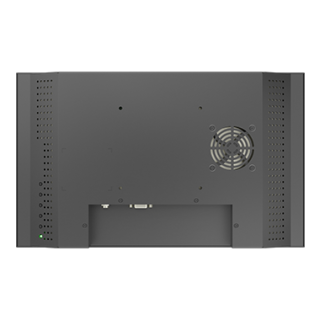

- Wall Mounting：VESA Mount (100 x 100 mm, M4*6L)
| Panel | Model | ADDP15NH01.0 |
|---|---|---|
| Resolution | 1920 x 1080 | |
| Size | 15.6 inch | |
| Display Area | 344.16 (H) x 193.59 (V) mm | |
| Brightness | 1000 (Typ.) nits | |
| Contrast | 1000 : 1 (Typ.) | |
| Viewing Angle | 89°/ 89°/ 89°/ 89° (L/R/U/D) | |
| Response Time | 25 ms | |
| Color | 16.2 M | |
| Aspect Ratio | 16 : 9 | |
| LED Backlight Lifetime | 50,000 hrs. | |
| Display Orientation | Portrait | |
| Power | Consumption | < 25 W |
| Input | DC 12V / 5A | |
| Environment | Operating Temp | 0 ~ 50 ℃ |
| Operating Humidity | 5 ~ 90% RH non-condensing | |
| Storage Temp | -20 ~ 60 ℃ | |
| Storage Humidity | 5 ~ 90% RH non-condensing | |
| Dimensions | Body Size | 369.8 (H) x 224.3 (V) x 42 (D) mm |
| Package Size / Carton | 355 (H) x 500 (V) x 170 (D) mm | |
| Net Weight | ~ 2.2 kg (Gross : ~ 3.5 kg) | |
| Other | Operation | Video, Display, Color, Advanced, Input, System Settings, Information |
| Accessory | Adapter (DC 12V / 5A), Power cord | |
| Speaker | N/A | |
| I/O Ports | VGA*1, HDMI*1, DC Power Input | |
| Wall Mounting | VESA Mount (100 x 100 mm, M4*6L) |
