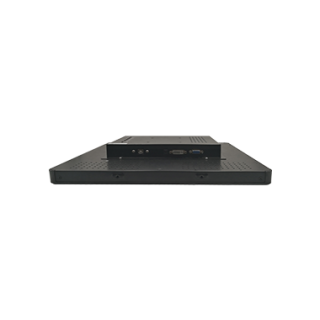

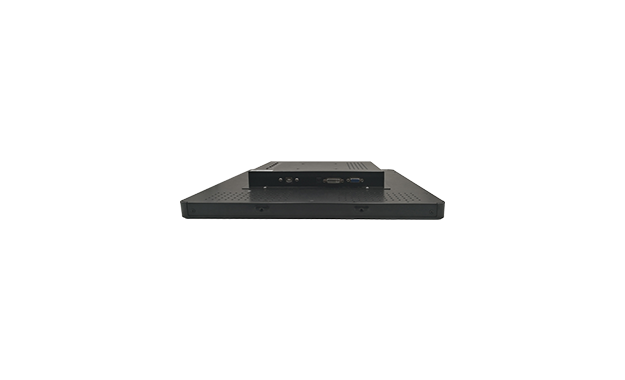

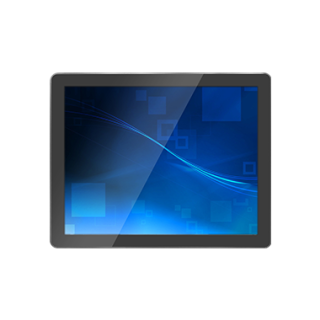

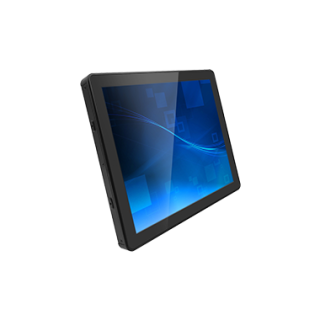

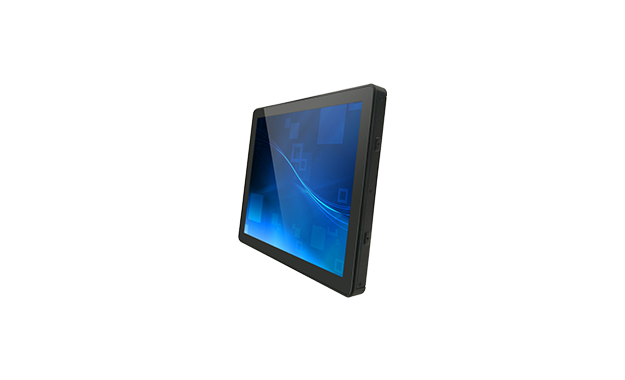

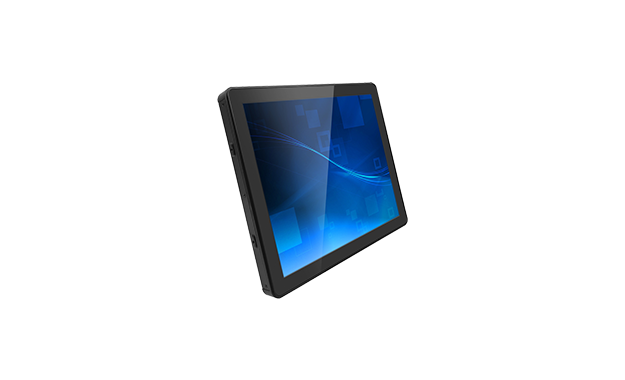

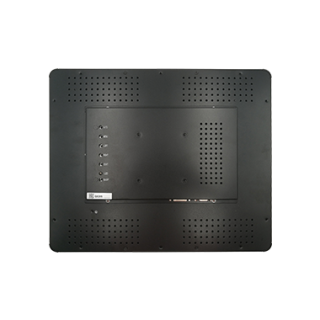

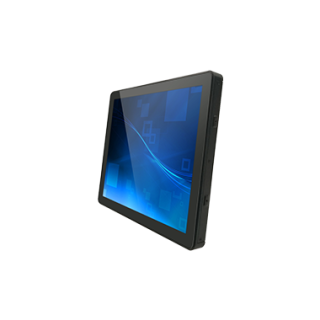

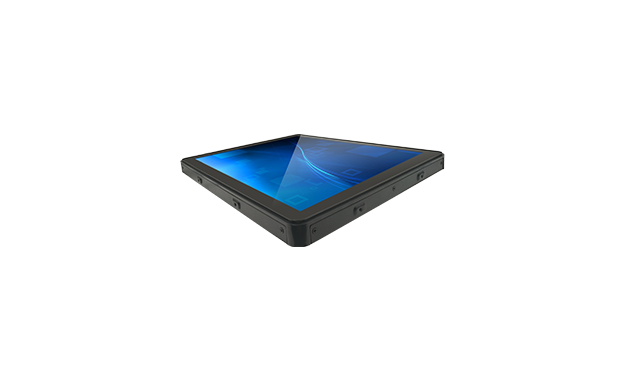

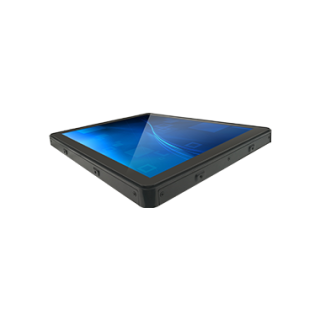

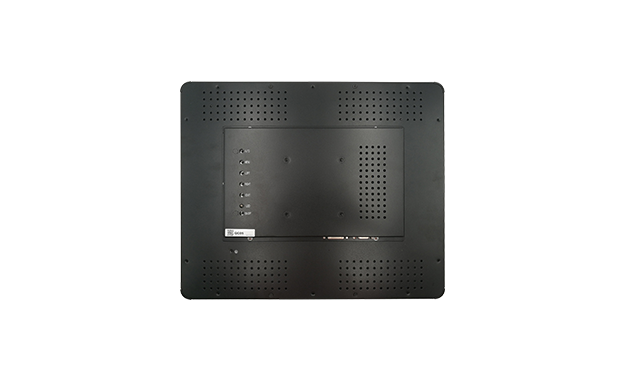

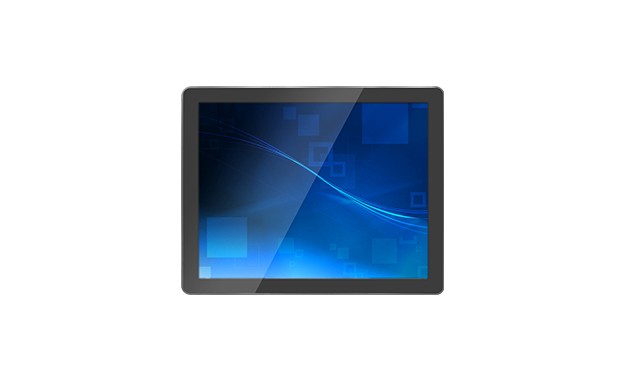

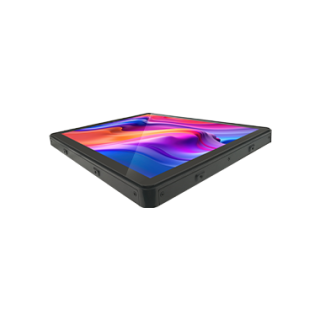

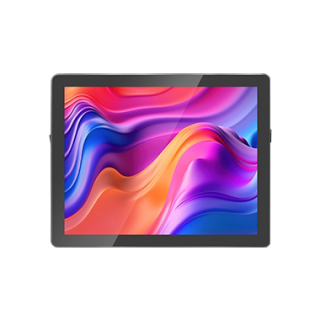

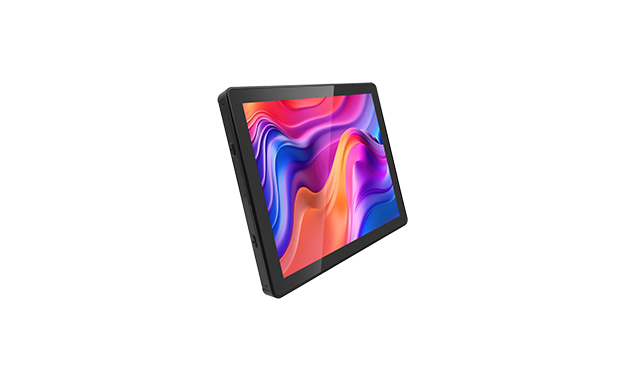

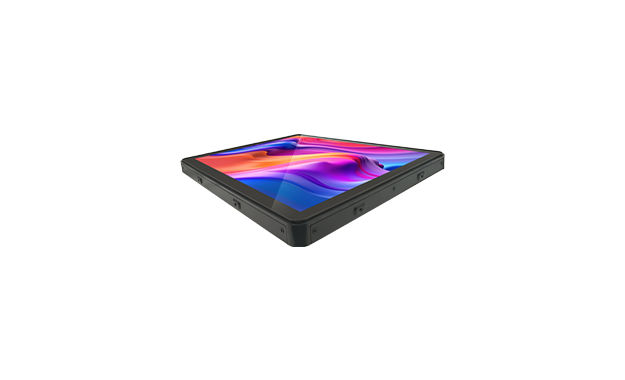

Model：AMTD17PN03.0
17” PCAP Touch Display
- Size：17 inch
- Touch Type：PCAP (10 Points)
- Brightness：350 nits
- Resolution：1280 x 1024
- Contrast：1000 : 1
- Viewing Angle：170° (H) / 160° (V)
- Response Time：5 ms
- Color：16.7 M
- LED Backlight Lifetime：50,000 Hrs.
- I/O Ports：VGA, DVI-D, USB
| Panel | Model | AMTD17PN03.0 |
|---|---|---|
| Resolution | 1280 x 1024 | |
| Size | 17 inch | |
| Display Area | 337.92 (H) x 270.336 (V) mm | |
| Brightness | 350 nits | |
| Contrast | 1000 : 1 | |
| Viewing Angle | 170° (H) / 160° (V) | |
| Response Time | 5 ms (Typ.Tr+Tf) | |
| Color | 16.7M | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Landscape/Portrait | |
| Touch Panel | Touch Type | PCAP |
| Structure | N/A | |
| Controller IC | N/A | |
| Interface | USB | |
| Multi-touch | 10 Points (PCAP Touch) | |
| Transmission Rate | N/A | |
| Bonding | N/A | |
| Surface Hardness | N/A | |
| Power | Consumption | < 30W |
| Input | DC 12V | |
| Environment | Operating Temp | 0 ~ 50 ℃ (Non-Condensation) |
| Operating Humidity | 5 ~ 90% RH | |
| Storage Temp | -20 ~ 60 ℃ (Non-Condensation) | |
| Storage Humidity | 5 ~ 90% RH | |
| Dimensions | Body Size | 323.4 (H) x 391 (V) x 59.2 (T) mm |
| Package Size / Carton | N/A | |
| Net Weight | N/A | |
| Gross Weight | N/A | |
| Other | Operation | N/A |
| Accessory | N/A | |
| Speaker | N/A | |
| I/O Ports | VGA, DVI-D, USB | |
| Wall Mounting | VESA and Side Mount |
