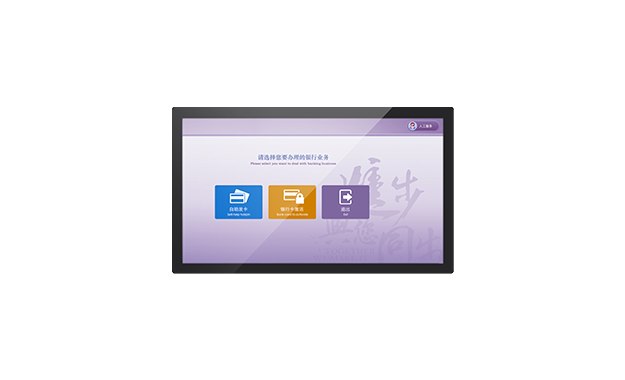

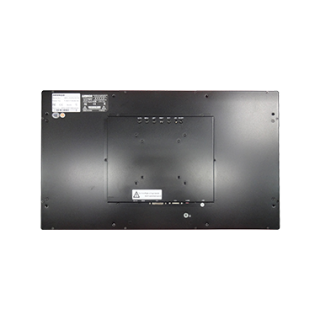

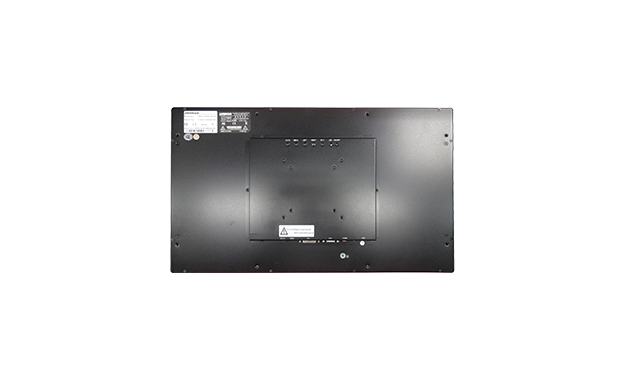

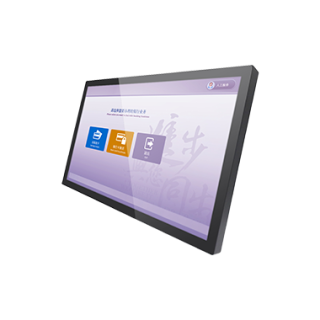

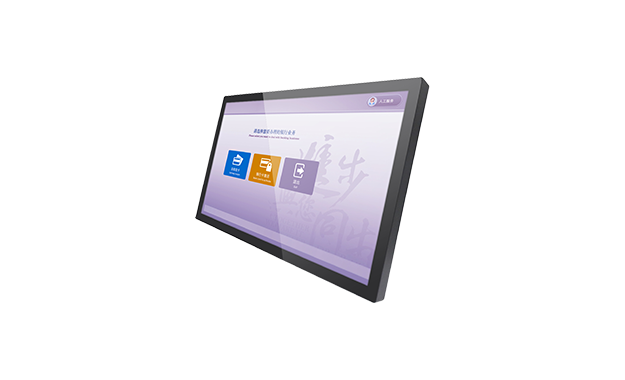

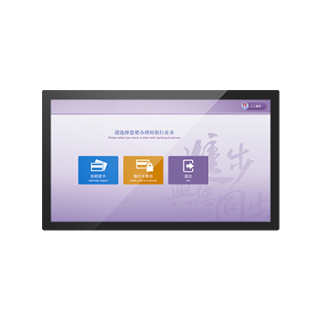

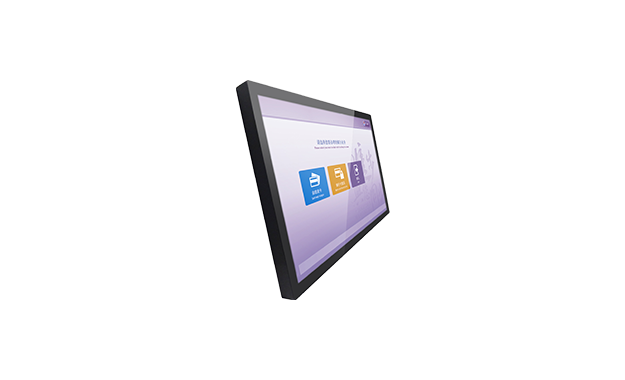

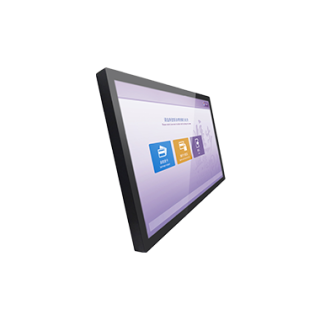

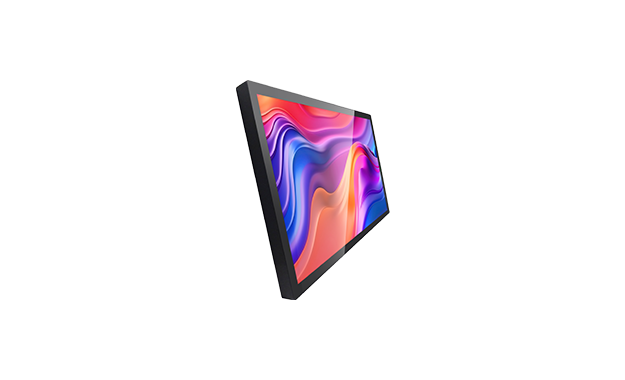

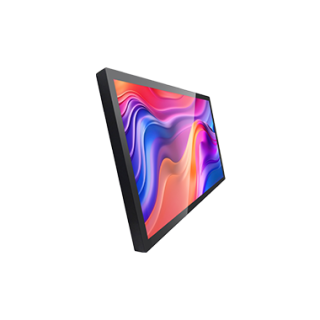

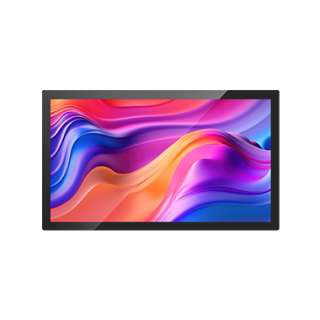

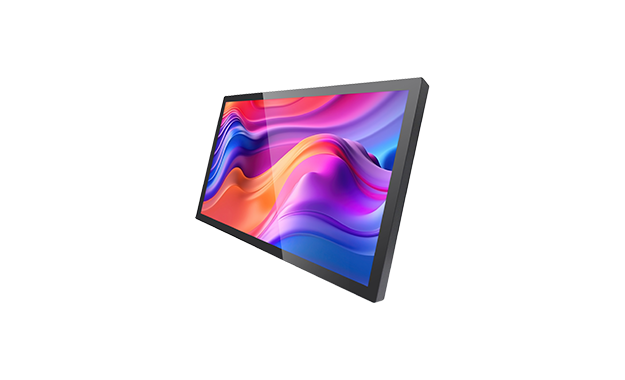

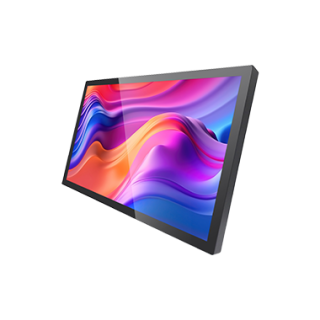

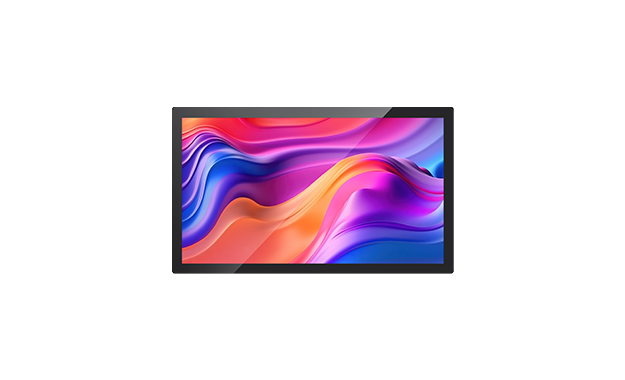

Model：AMTD21PN04.0
21.5” PCAP Touch Display
- Size：21.5 inch
- Touch Type：PCAP (10 Points)
- Brightness：250 nits
- Resolution：1920 x 1080
- Contrast：1000 : 1
- Viewing Angle：178° (H) / 178° (V)
- Response Time：22 ms
- LED Backlight Lifetime：50,000 Hrs.
- I/O Ports：HDMI, VGA, DVI-D, Audio, USB
| Panel | Model | AMTD21PN04.0 |
|---|---|---|
| Resolution | 1920 x 1080 | |
| Size | 21.5 inch | |
| Display Area | 476.064 (H) x 267.786 (V) mm | |
| Brightness | 250 nits | |
| Contrast | 1000 : 1 | |
| Viewing Angle | 178° (H) / 178° (V) | |
| Response Time | 22 ms (Typ.Tr+Tf) | |
| Color | N/A | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Landscape/Portrait | |
| Touch Panel | Touch Type | PCAP |
| Structure | N/A | |
| Controller IC | N/A | |
| Interface | USB | |
| Multi-touch | 10 Points (PCAP Touch) | |
| Transmission Rate | N/A | |
| Bonding | N/A | |
| Surface Hardness | N/A | |
| Power | Consumption | < 25W |
| Input | DC 12V | |
| Environment | Operating Temp | 0 ~ 60 ℃ (Non-Condensation) |
| Operating Humidity | 5 ~ 90% RH | |
| Storage Temp | -20 ~ 60 ℃ (Non-Condensation) | |
| Storage Humidity | 5 ~ 90% RH | |
| Dimensions | Body Size | 303.4 (H) x 511.9 (V) x 43 (T) mm |
| Package Size / Carton | N/A | |
| Net Weight | N/A | |
| Gross Weight | N/A | |
| Other | Operation | Normal operation hour |
| Accessory | AC-DC adapter | |
| Speaker | Optional | |

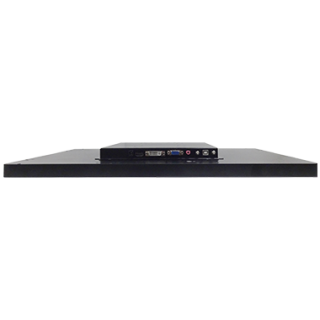

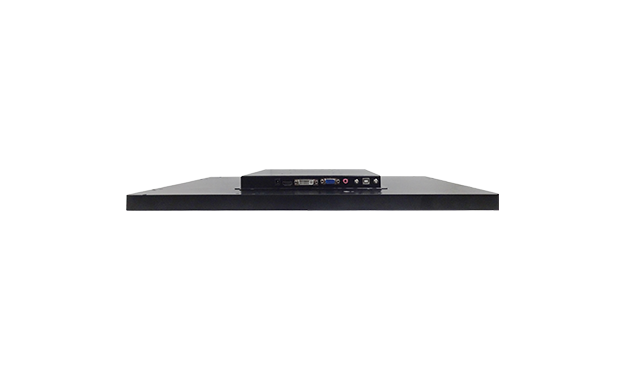

| I/O Ports | HDMI, VGA, DVI-D, Audio, USB | |
| Wall Mounting | VESA mount |
