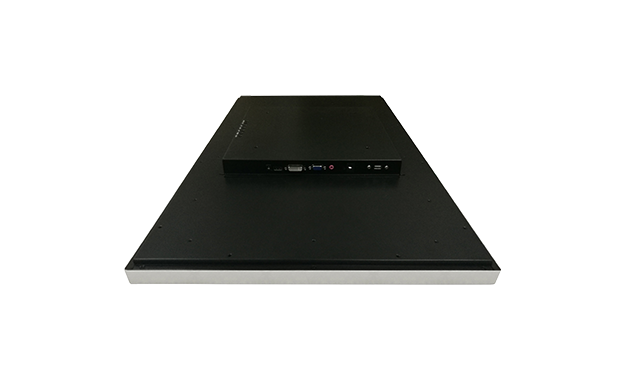

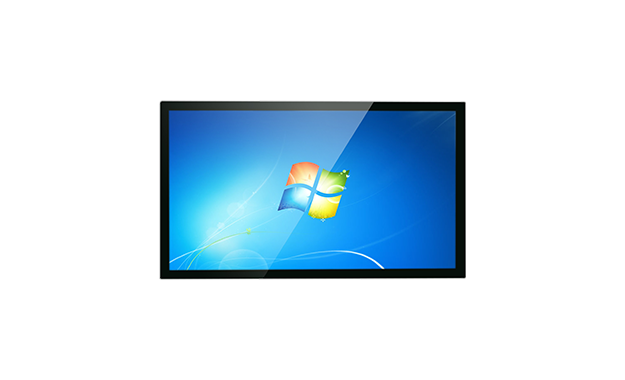

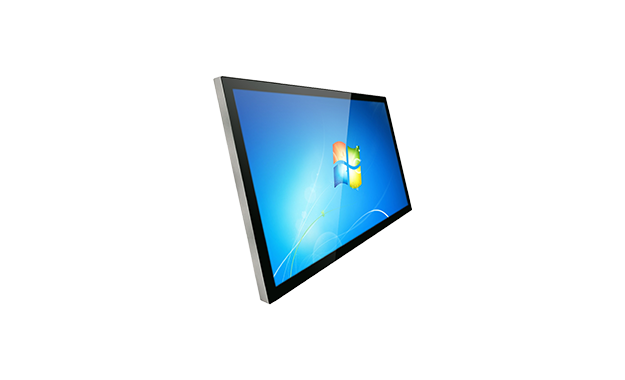

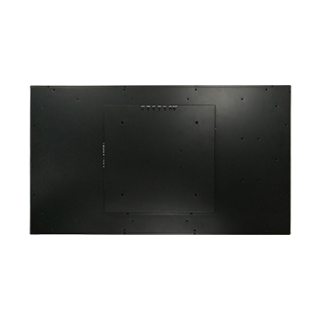

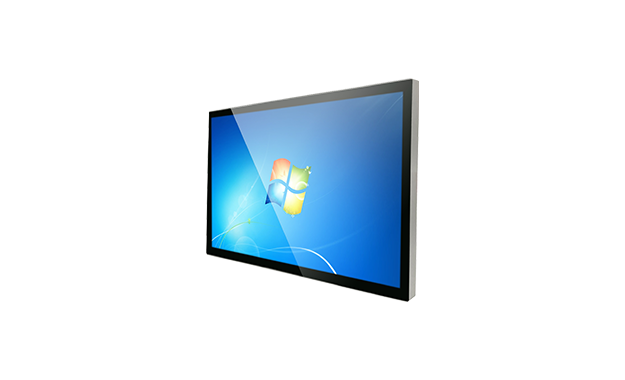

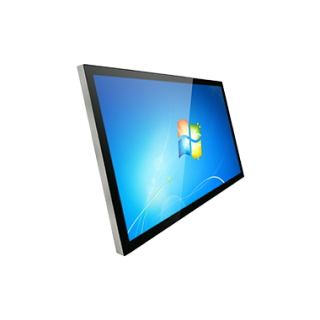

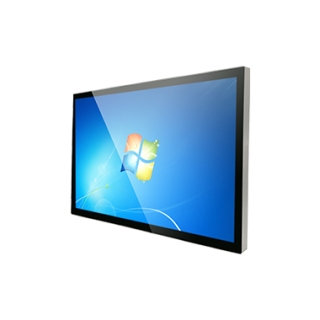

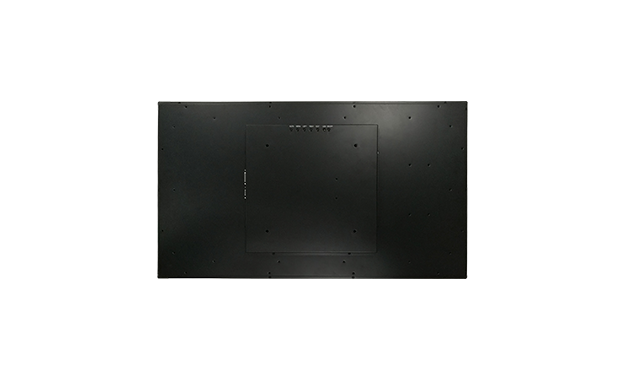

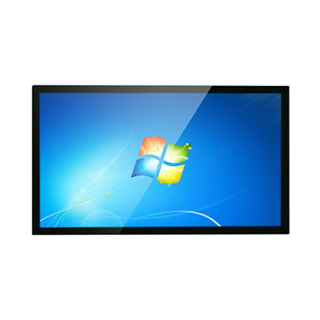

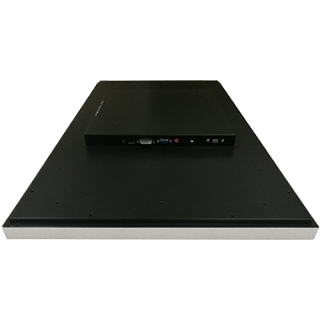

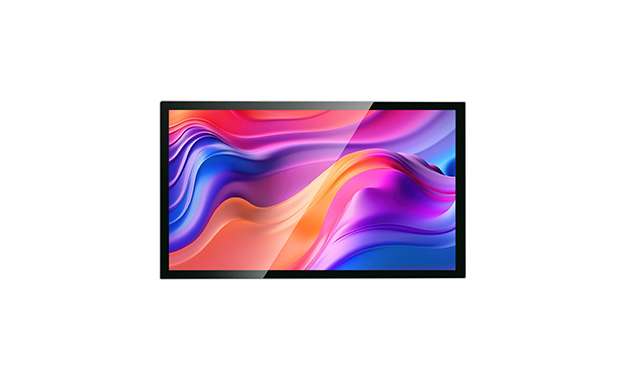

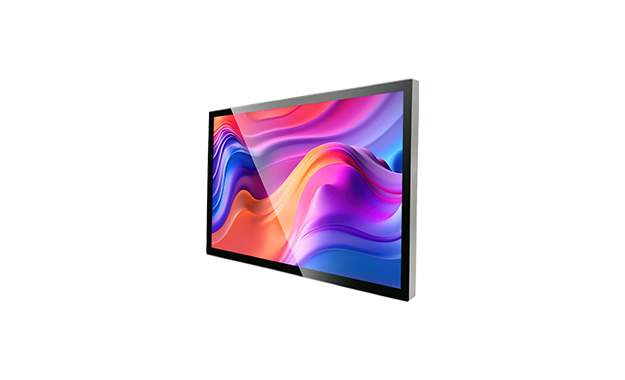

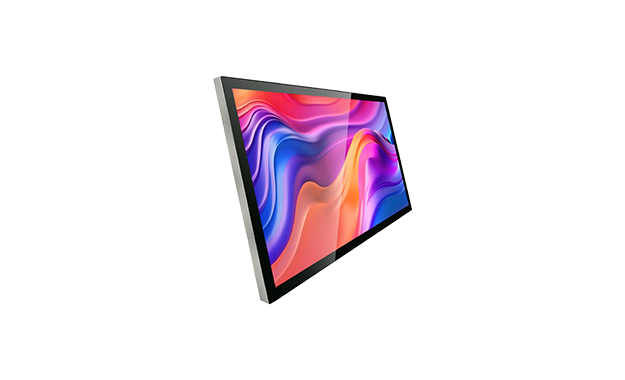

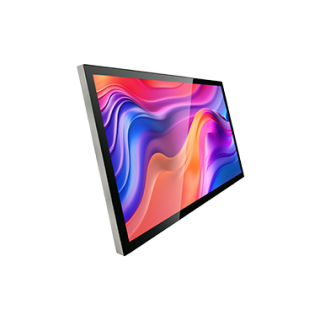

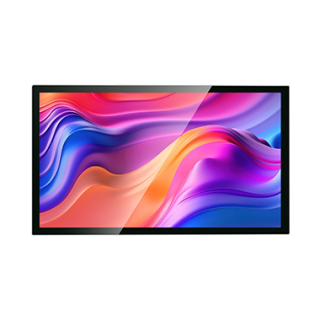

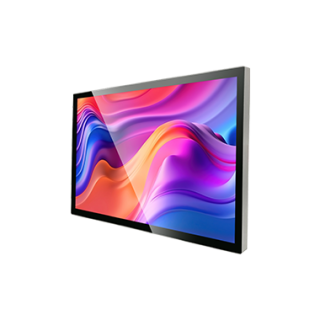

Model：AMTD32PN01.0
32” PCAP Touch Display
- Size：31.5 inch
- Touch Type：PCAP (10 Points)
- Brightness：400 nits
- Resolution：1920 x 1080
- Contrast：4000 : 1
- Viewing Angle：178° (H) / 178° (V)
- Response Time：8 ms
- Color：16.7 M
- LED Backlight Lifetime：30,000 Hrs.
- I/O Ports：HDMI, VGA, DVI-I, USB
| Panel | Model | AMTD32PN01.0 |
|---|---|---|
| Resolution | 1920 x 1080 | |
| Size | 31.5 inch | |
| Display Area | 698.4 (H) x 392.85 (V) mm | |
| Brightness | 400 nits | |
| Contrast | 4000 : 1 | |
| Viewing Angle | 178° (H) / 178° (V) | |
| Response Time | 8 ms (Typ.Tr+Tf) | |
| Color | 16.7 M | |
| LED Backlight Lifetime | 30,000 Hrs. | |
| Display Orientation | Landscape/Portrait Enabled | |
| Touch Panel | Touch Type | PCAP |
| Structure | N/A | |
| Controller IC | N/A | |
| Interface | USB | |
| Multi-touch | 10 Points (PCAP Touch) | |
| Transmission Rate | N/A | |
| Bonding | N/A | |
| Surface Hardness | N/A | |
| Power | Consumption | < 55W |
| Input | AC 100-240V, 50/60Hz | |
| Environment | Operating Temp | -5 ~ 50 ℃ (Non-Condensation) |
| Operating Humidity | 5 ~ 90% RH | |
| Storage Temp | - 20 ~ 60 ℃ (Non-Condensation) | |
| Storage Humidity | 5 ~ 90% RH | |
| Dimensions | Body Size | 441 (H) x 747 (V) x 58 (T) mm |
| Package Size / Carton | N/A | |
| Net Weight | N/A | |
| Gross Weight | N/A | |
| Other | Operation | Normal operation hour |
| Accessory | N/A | |
| Speaker | Optional | |
| I/O Ports | HDMI, VGA, DVI-I, USB | |
| Wall Mounting | VESA mount |
