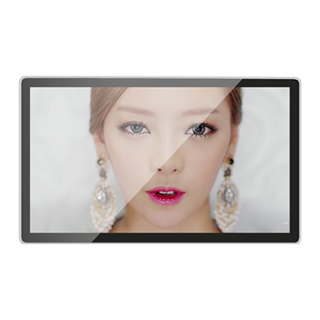

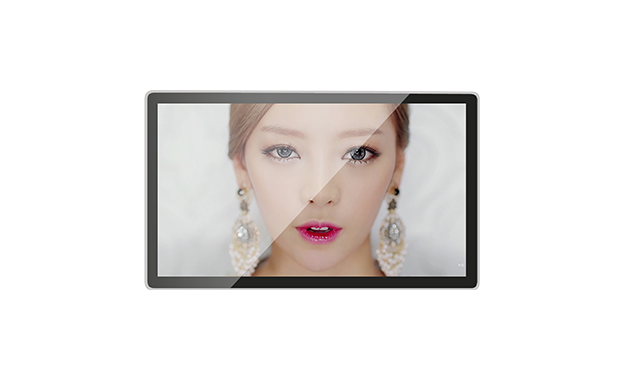

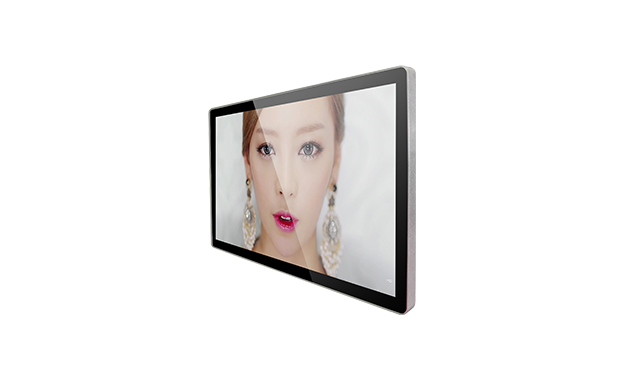

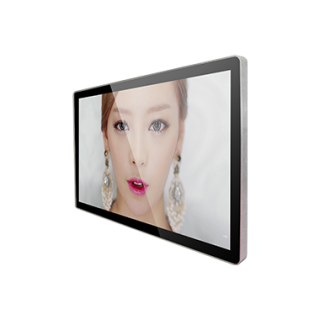

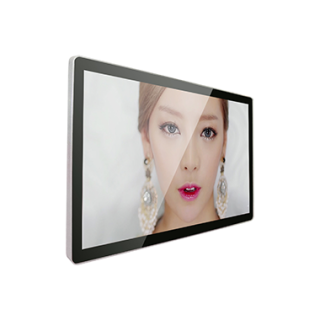

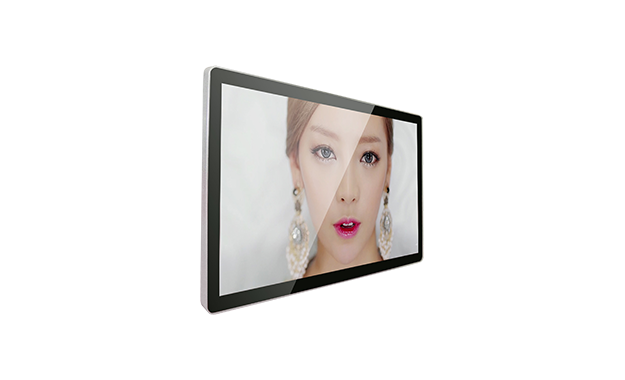

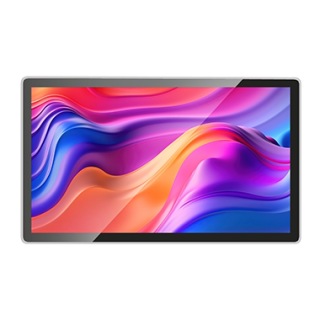

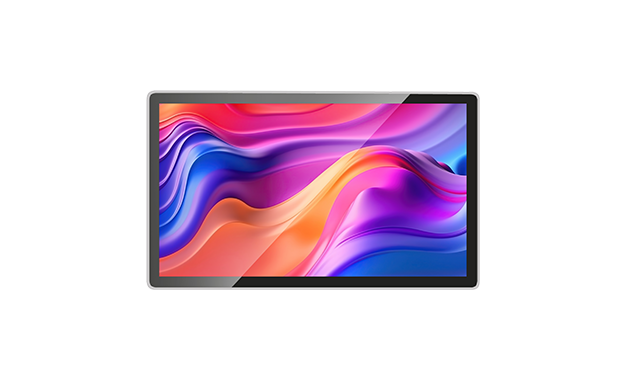

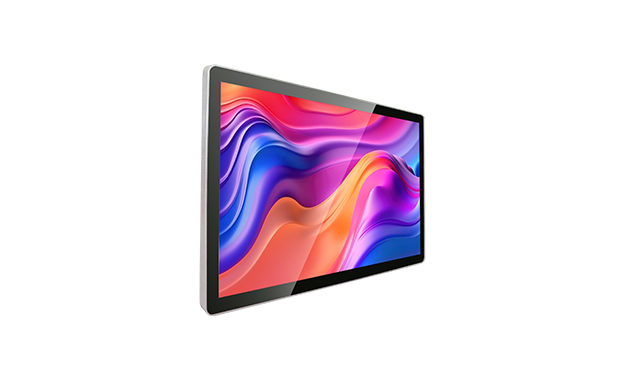

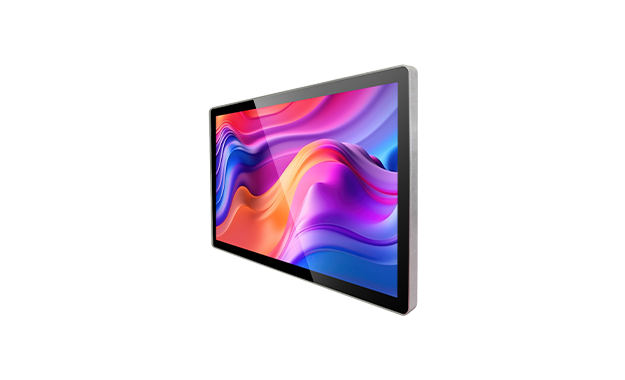

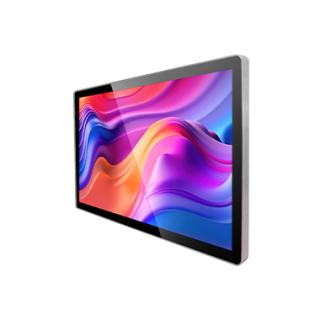

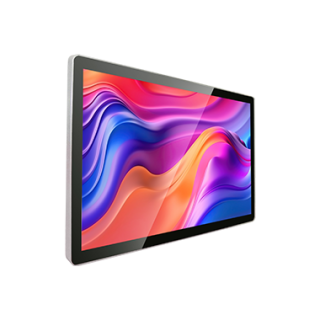

Model：AMTD43PN01.0
43” PCAP Touch Display
- Size：43 inch
- Touch Type：PCAP (10 Points)
- Brightness：500 nits
- Resolution：1920 x 1080
- Contrast：4000 : 1
- Viewing Angle：178° (H) / 178° (V)
- Response Time：8 ms
- Color：16.7 M
- LED Backlight Lifetime：50,000 Hrs.
- I/O Ports：HDMI, VGA, DVI-D, Audio
| Panel | Model | AMTD43PN01.0 |
|---|---|---|
| Resolution | 1920 x 1080 | |
| Size | 43 inch | |
| Display Area | 941.2 (H) x 529.4 (V) mm | |
| Brightness | 500 nits | |
| Contrast | 4000 : 1 | |
| Viewing Angle | 178° (H) / 178° (V) | |
| Response Time | 8 ms (Typ.Tr+Tf) | |
| Color | 16.7 M | |
| LED Backlight Lifetime | 50,000 hrs. | |
| Display Orientation | Landscape/Portrait Enabled | |
| Touch Panel | Touch Type | PCAP |
| Structure | N/A | |
| Controller IC | N/A | |
| Interface | USB | |
| Multi-touch | 10 Points (PCAP Touch) | |
| Transmission Rate | N/A | |
| Bonding | N/A | |
| Surface Hardness | N/A | |
| Power | Consumption | < 80W |
| Input | AC 100 ~ 240V, 50/60Hz | |
| Environment | Operating Temp | 0 ~ 50 ℃ (Non-Condensation) |
| Operating Humidity | 5 ~ 90% RH | |
| Storage Temp | 0 ~ 50 ℃ (Non-Condensation) | |
| Storage Humidity | 5 ~ 90% RH | |
| Dimensions | Body Size | 588.4 (H) x 1000.2 (V) x 73.6 (T) mm |
| Package Size / Carton | N/A | |
| Net Weight | N/A | |
| Gross Weight | N/A | |
| Other | Operation | Normal operation hours |
| Accessory | N/A | |
| Speaker | Optional | |
| I/O Ports | HDMI, VGA, DVI-D, Audio | |

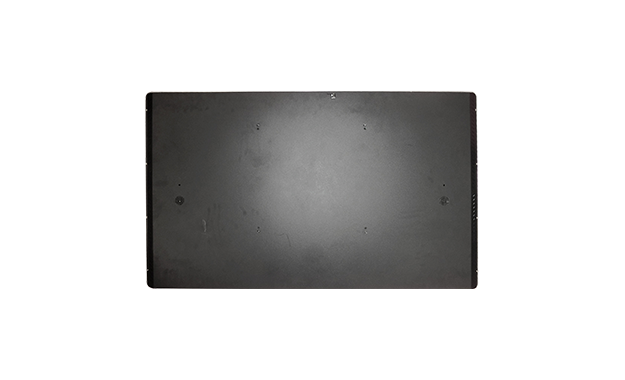

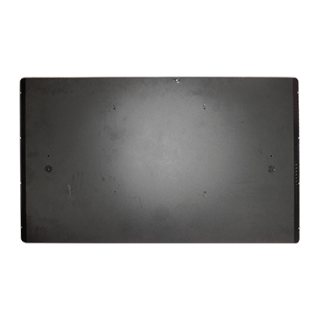

| Wall Mounting | VESA mount |
