Model：VDDP86NE01.0

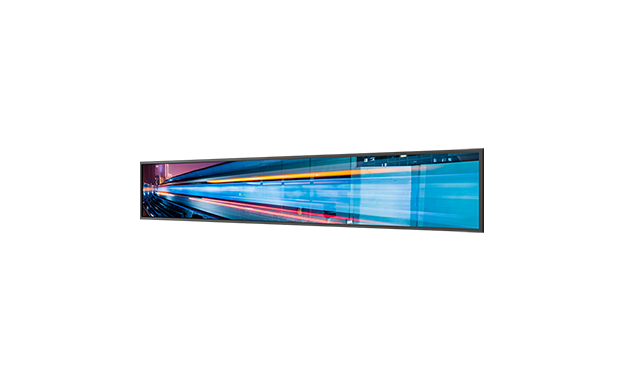

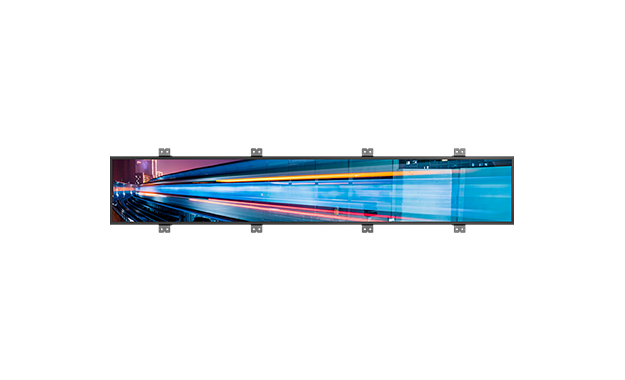

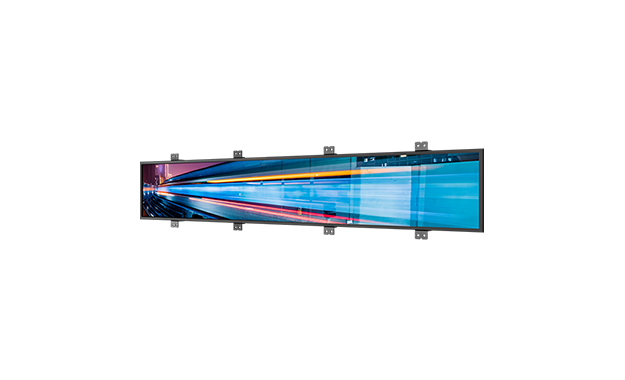

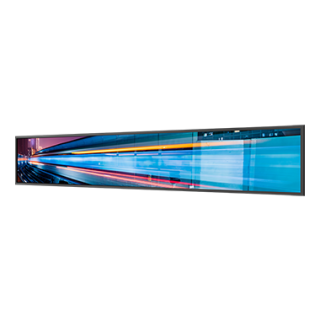

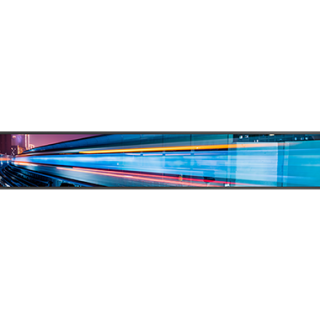

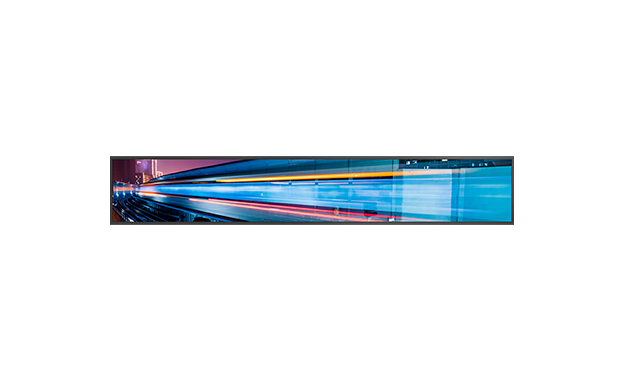

86” Bar Type LCD Display
- Size：86 inch
- Brightness：700 nits
- Resolution：3840 x 600
- Contrast：1200 : 1
- View Angle：89°/89°/89°/89° (L/R/U/D)
- Response Time：13 ms
- Color：1.07 G
- LED Backlight Lifetime：50,000 Hrs.
- I/O Ports：DP*1, HDMI*1, DVI*1, VGA*1, AV*1, USB*2, RS232*1
- Usage (hrs/days)：24/7
| Panel | Model | VDDP86NE01.0 |
|---|---|---|
| Resolution | 3840 x 600 | |
| Size | 86 inch | |
| Display Area | 2148.48 (H) x 335.7 (V) mm | |
| Brightness | 700 (Typ.) nits | |
| Contrast | 1200 : 1 (Typ.) | |
| Viewing Angle | 89°/ 89°/ 89°/ 89° (L/R/U/D) | |
| Response Time | 13 ms | |
| Color | 1.07 G | |
| Aspect Ratio | 16 : 2.5 | |
| LED Backlight Lifetime | 50,000 Hrs | |
| Display Orientation | Landscape / Portrait | |
| Power | Consumption | ≤ 250 W (Excluding OPS) |
| Input | AC 100-240V | |
| Standby | 9 W (Include OPS Wake Up Function) | |
| Environment | Operating Temp | -10 ~ 50 ℃ |
| Operating Humidity | 10 ~ 95% RH | |
| Storage Temp | -30 ~ 70 ℃ | |
| Storage Humidity | 10 ~ 95% RH | |
| Dimensions | Appearance | Gray (Optional) |
| Net Weight | ~ 35 kg | |
| Body Size | 2178 (W) x 367 (H) x 75 (D) mm | |
| Package Box | 2282 (W) x 211 (H) x 571 (D) mm (1 Set/Box) | |
| Other | Operation | 24/7 |
| Accessory | Remote Controller, 1.5M Power Cord x 1 | |
| Speaker | 2*8W | |
| I/O Ports | DP*1, HDMI*1, DVI*1, VGA*1, AV*1, USB*2 (1 Reserved, 1 for Program Upgrade Only), RS232*1 | |

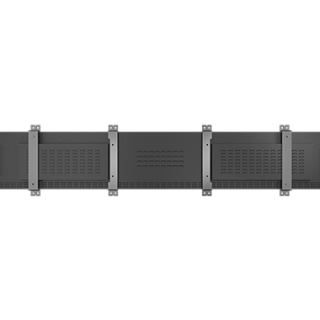

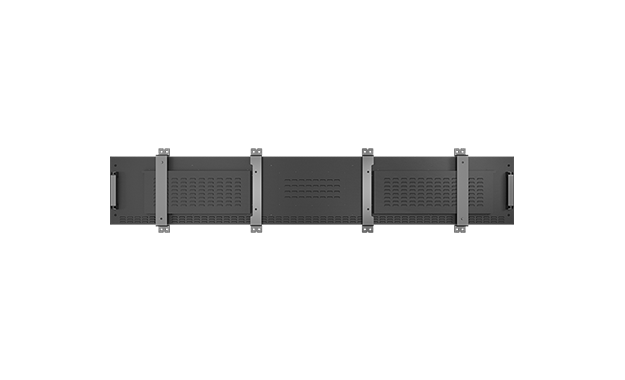

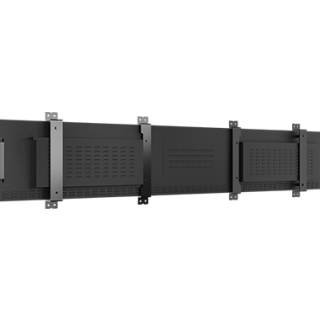

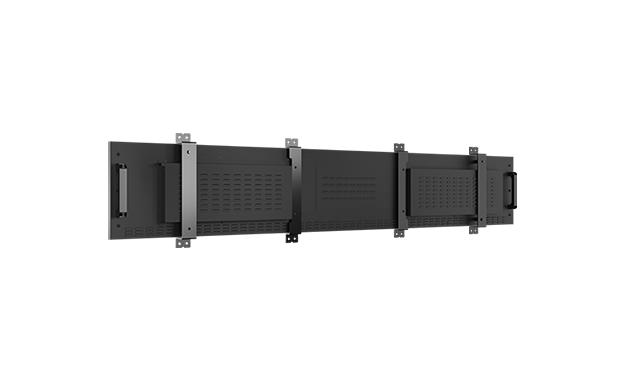

| Wall Mounting | Side Mount Bracket (Please Refer to the Drawing in the Spec.) |
