| Category | Tag Size (mm) | Display Size (mm) | Resolution/DPI | Color | Battery Type | Warranty Date | Battery Lifetime |
|---|---|---|---|---|---|---|---|
| 1.5" | 37.6(H) x 45.8(V) x 13.4(D) | 27(H) x 27(W) | 200(H) x 200(V) / 189 | 4-color(BWR) | CR2450 1 cells | 1 year | 5 years~ (2 times per 1day) |
| 2.1" | 35(H) x 70.8(V) x 13.4(D) | 23.64(H) x 48.6(W) | 296(H) x 144(V) / 155 | 4-color(BWR) | CR2450 2 cells | 1 year | 7 years~ (2 times per 1day) |
| 2.7" | 42.2(H) x 82.1(V) x 14.3(D) | 30.7(H) x 60.1(W) | 152(H) x 296(V) / 125 | 4-color(BWR) | CR2450 2 cells | 1 year | 7 years~ (2 times per 1day) |

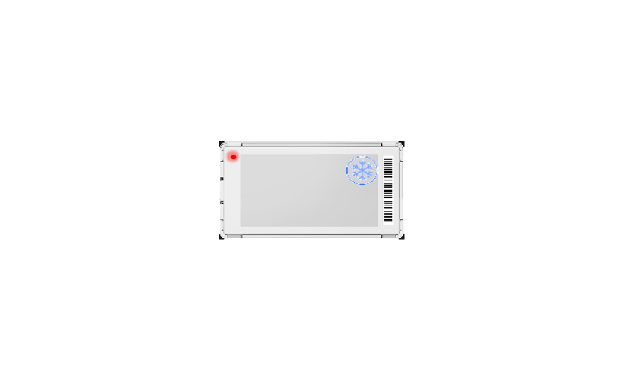

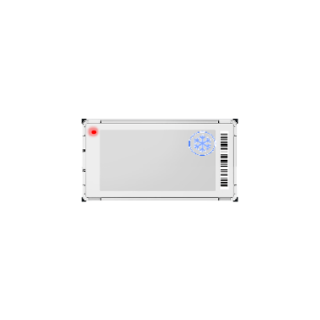

| 2.7" (Frozen) | 42.2(H) x 82.1(V) x 14.3(D) | 30.7(H) x 60.1(W) | 152(H) x 296(V) / 125 | Mono (BW) | CR2450 2 cells | 1 year | 7 years~ (2 times per 1day) |

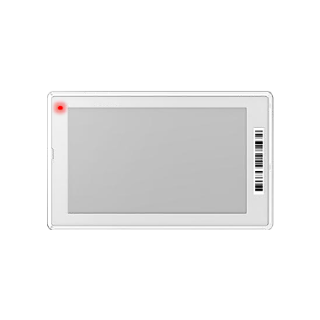

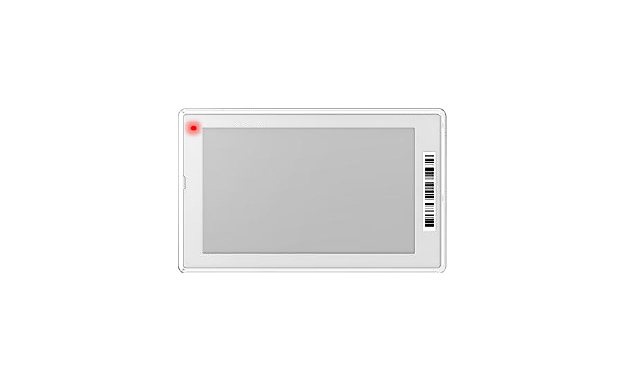

| 3.7" | 63.2(H) x 104.0(V) x 6.9(D) | 47.04(H) x 81.5(W) | 240(H) x 416(V) / 130 | 4-color(BWR) | CR2450 2 cells in 1 Package | 1 year | 7 years~ (2 times per 1day) |

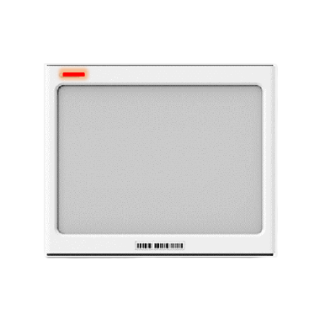

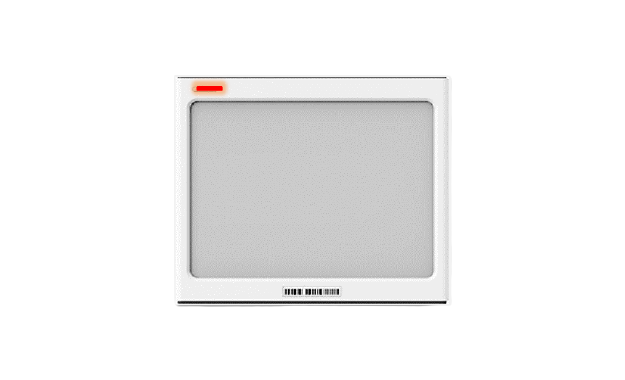

| 5.8" | 114.1(H) x 134.5(V) x 7.6(D) | 88.2(H) x 118.78(W) | 480(H) x 648(V) / 138 | 4-color(BWR) | CR2450 3 cells in 1 Package | 1 year | 7 years~ (2 times per 1day) |
| 7.5" | 183.0(W) x 129.0(H) x 15.0(D) | 170.2(W) x 111.2(H) | 800(H) x 480(V) / 124 | 4-color(BWR) | CR2450 coin cell 3pack | 1 year | 7 years~ (2 times per 1day) |

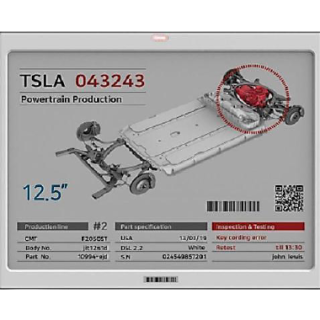

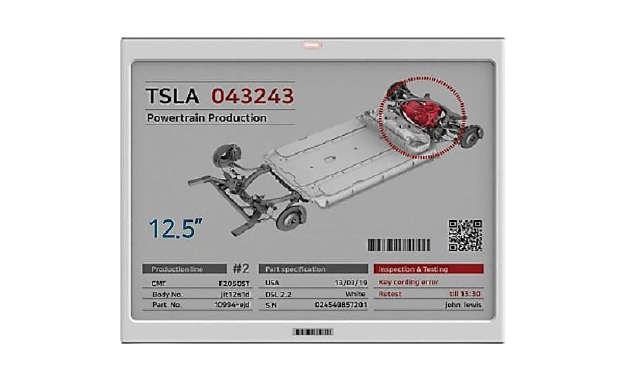

| 12.5" | 295.3(W) x 233.5(H) x 20.0(D) | 253(W) x 191(H) | 1304(H) x 984(V) / 131 | 4-color(BWR) | AAAA Alkaline 3pack | 1 year | 7 years~ (2 times per 1day) |
